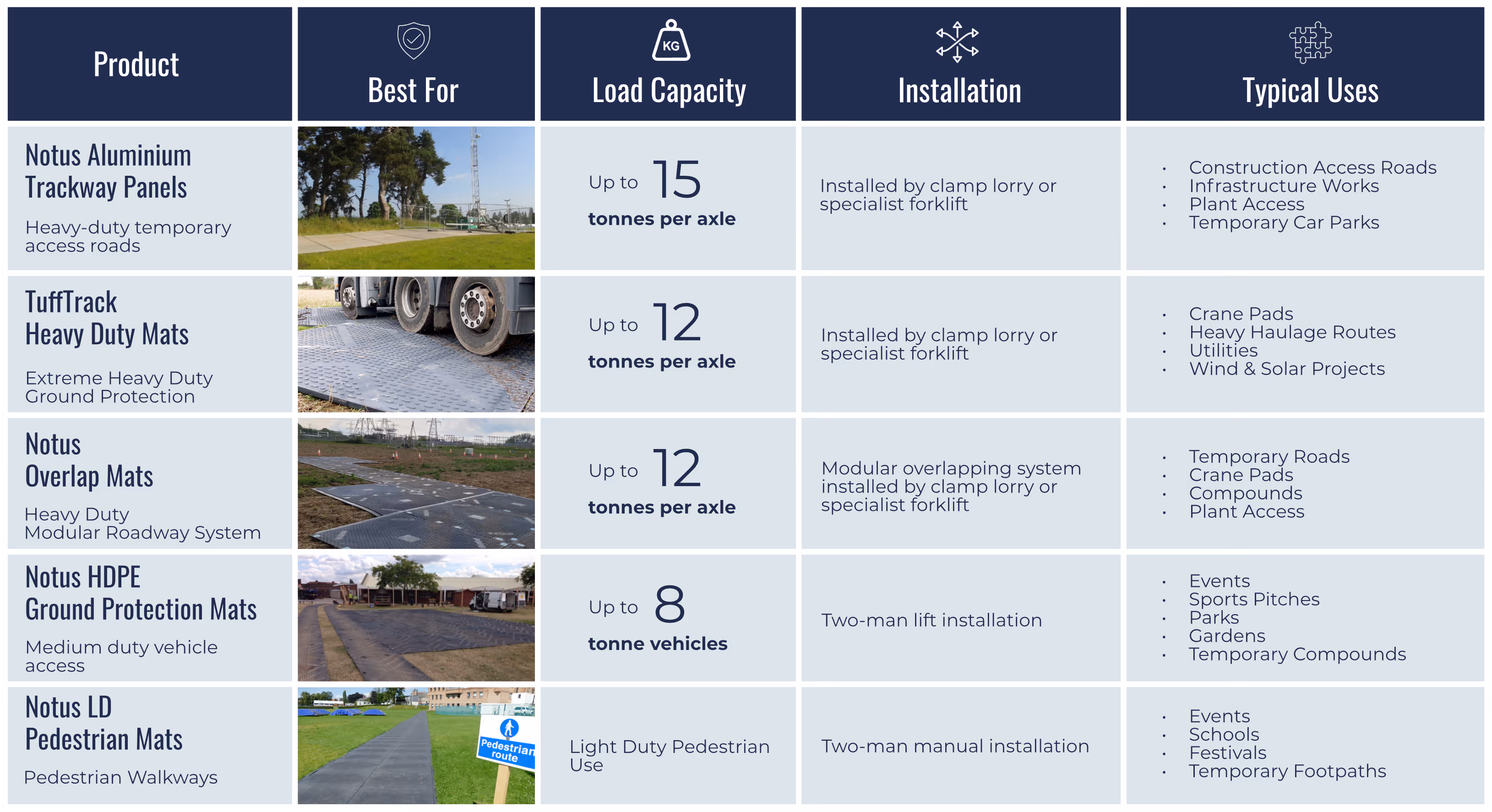

Every project is different. Ground conditions, vehicle weight and access requirements all play a role in selecting the right trackway or ground protection system. At Notus Ground Safe, we offer a range of solutions designed to suit everything from light pedestrian access to heavy-duty construction traffic.

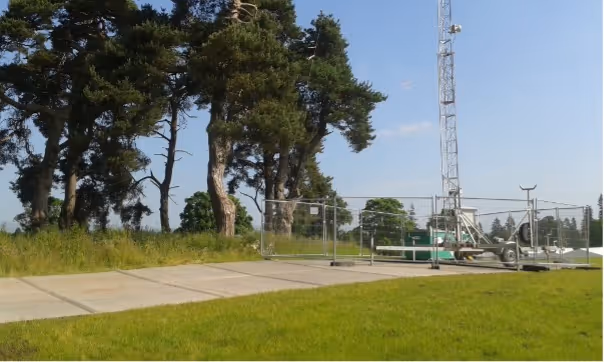

The Notus Aluminium Trackway Panel provides a robust and reliable solution for creating temporary access roads across soft, uneven or challenging ground conditions.
Engineered to meet the safety and operational needs of both pedestrians and vehicles, the Notus system is designed with zero trip hazards, ensuring safe movement across site access routes, compounds and working areas.
Our latest Notus heavy aluminium trackway panels create a 3.0-metre wide load-bearing temporary roadway, allowing even the heaviest road-going vehicles to safely travel over harsh or unstable terrain. This makes them ideal for construction projects, utilities works, events and rural access.
The Notus Aluminium Trackway Panel features an aggressive underside profile designed to displace surface water and improve stability on soft ground. For challenging terrain or steep inclines, panels can also be installed face up, providing enhanced traction for vehicles and plant.
Panel Dimensions
Each panel measures 3 m × 2.44 m and can be arranged in various configurations to suit the unique requirements of your project.
Heavy Vehicle Load Capacity
Designed to carry up to 15 tonnes per axle, these panels support everything from standard cars to heavy cranes, thanks to their robust, load-distributing construction.
Articulated Panel Framework
Hollow, box-shaped panels connect through integrated joints that flex and adapt to the ground contours. This articulation allows the trackway to maintain a stable, continuous surface even over uneven terrain, ensuring smooth and reliable passage.
Dual-Sided Functionality
• Top Surface: Low-profile and pedestrian-friendly for safe walking.
• Underside: Corrugated for maximum grip and traction on soft or uneven ground.
Seamless,Trip-Resistant Surface
All fasteners and cross members are concealed beneath the surface, creating a continuous, obstacle-free route. This ensures safe and effortless movement for both pedestrians and vehicles.
High-Grip Aluminium for Challenging Conditions
Engineered for wet or unstable terrain, the panels maintain maximum traction and stability while sustaining heavy loads up to 15 tonnes per axle.
Ideal Applications
Notus Aluminium Trackway Panels are ideal for:
• Temporary access roads
• Cross-country vehicle routes
• Work pads and standing areas
• Temporary compounds and site roads
• Temporary car parks
• Construction and infrastructure access
Fast & Efficient Installation
Panels can be installed using a bespokeforklift or HGV-mounted clamp system. Depending on site conditions, crews canlay up to 250 m per day, providing rapid, safe access across even the roughestterrain.
With their durable construction, flexible design, and fast installation, our panels provide a safe, reliable, and versatile solution for any temporary access or worksite requirement. Whether managing vehicles, pedestrians, or heavy equipment, our trackway panels deliver stability, efficiency, and peace of mind, keeping your project moving smoothly—no matter the terrain.

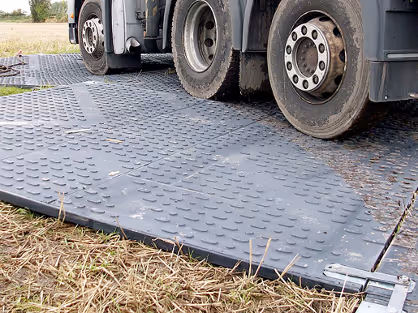

TuffTrack is a robust solution for temporary access and work surfaces, designed to support heavy loads while safeguarding ground integrity. Ideal for construction sites, events, and sensitive locations, it provides reliable traction and stability in demanding conditions.
Enquire today
Durable, Engineered Design
• Crafted from Ultra-High-Molecular-Weight Polyethylene (UHMWPE) reinforced with fiberglass, combining strength and flexibility.
• Each mat measures 3m × 2.5m with 43mm thickness, offering a 7.5 m² usable surface.
• Two functional surfaces:
o Vehicle-ready traction side for rough or uneven terrain.
o Smooth pedestrian side for walkways or temporary flooring.
Exceptional Load-Bearing Performance
Can sustain up to 205 tonnes under standard CBR10 soil conditions.
Supports safe movement on slopes up to 32.9° for vehicles and 30° for foot traffic.
Compression tests show:
- Young’s Modulus: 1.53 ± 0.06 GPa
- Maximum stress without failure: 32 MPa
Manufactured to BS EN ISO 7500-1:2018 standards for reliable performance.
• Long-lasting construction for heavy-duty applications.
• Large, high-traction surface reduces the need for steel plates or temporary solutions.
• Provides excellent grip on inclines, cambers, and uneven surfaces.
• Minimizes environmental impact and site damage.
• Fully chemically inert and recyclable for sensitive or heritage sites.
• Quick to transport, deploy, and link in various layouts.
TuffTrack ground protection mats are widely used across multiple sectors including:
• Construction and infrastructure
• Utilities and telecoms
• Rail and geotechnical projects
• Heavy haulage and crane operations
• Wind and solar energy projects
• Portable accommodation and modular buildings
• Events, sports and outdoor venues
Fast & Efficient Installation
Panels can be installed using a bespokeforklift or HGV-mounted clamp system. Depending on site conditions, crews canlay up to 250 m per day, providing rapid, safe access across even the roughestterrain.

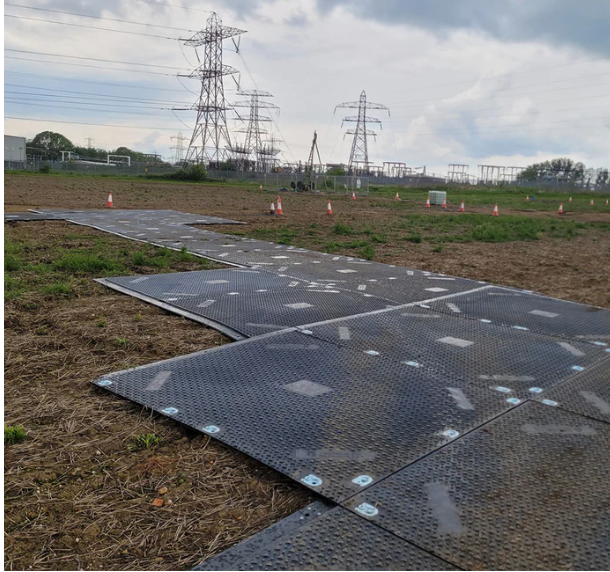

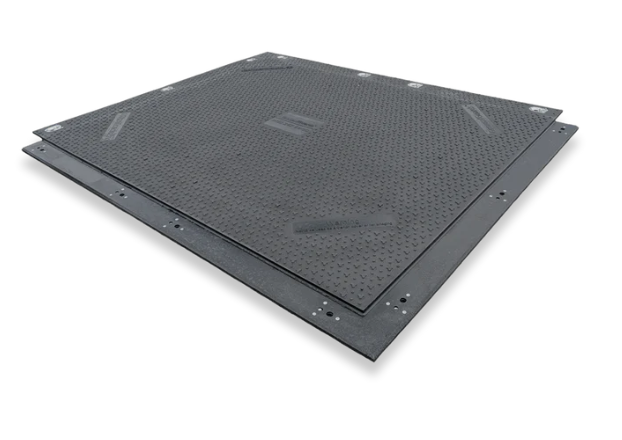

Notus Overlap is a next-generation heavy-duty ground protection mat, designed to deliver exceptional strength, stability and reliability across demanding site environments.
Engineered for rental fleets, major contractors and infrastructure projects, Notus Overlap provides a dependable solution for temporary roadways, crane pads and access routes where ground conditions are challenging or sensitive.
Manufactured to high European standards, Notus Overlap mats combine advanced modular design with high-performance materials, allowing heavy loads to be distributed efficiently while maintaining safe and stable working conditions for vehicles, plant and personnel.
Its overlapping design helps create a stronger, more continuous surface, making it ideal for applications where additional stability and load distribution are required.
• Overall size: 3m x 2.5m x 38mm
• Weight loading capacity: Up to 170 tonnes
• Large coverage area: 7.5m² per mat
• Heavy-duty construction designed for demanding groundconditions
• Overlap system for increased stability and surfacecontinuity
• Supports extreme loads up to 170 tonnes
• Large 3m x 2.5m coverage area for efficient ground protection
• Overlapping connection design for improved stability and strength
• Suitable for temporary roadways, crane pads and plant access routes
• High-traction surface for challenging ground conditions
• Helps prevent ground damage and costly reinstatement
• Durable and reusable for long-term project use
Notus Overlap ground protection mats are widely used across industries including:
• Construction and infrastructure projects
• Utilities and energy developments
• Heavy haulage and crane operations
• Rail and civil engineering works
• Temporary access roads and working platforms
• Events and large outdoor installations
Leading Ground Protection Mats for Hire

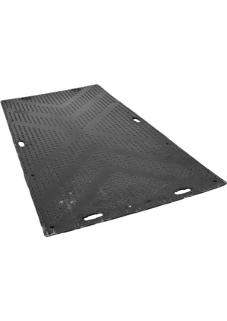

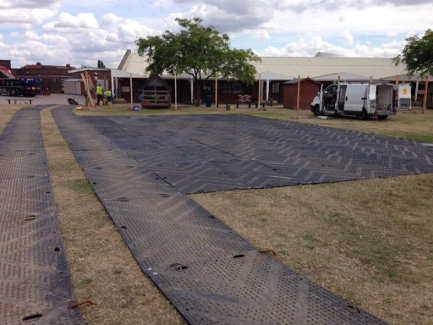

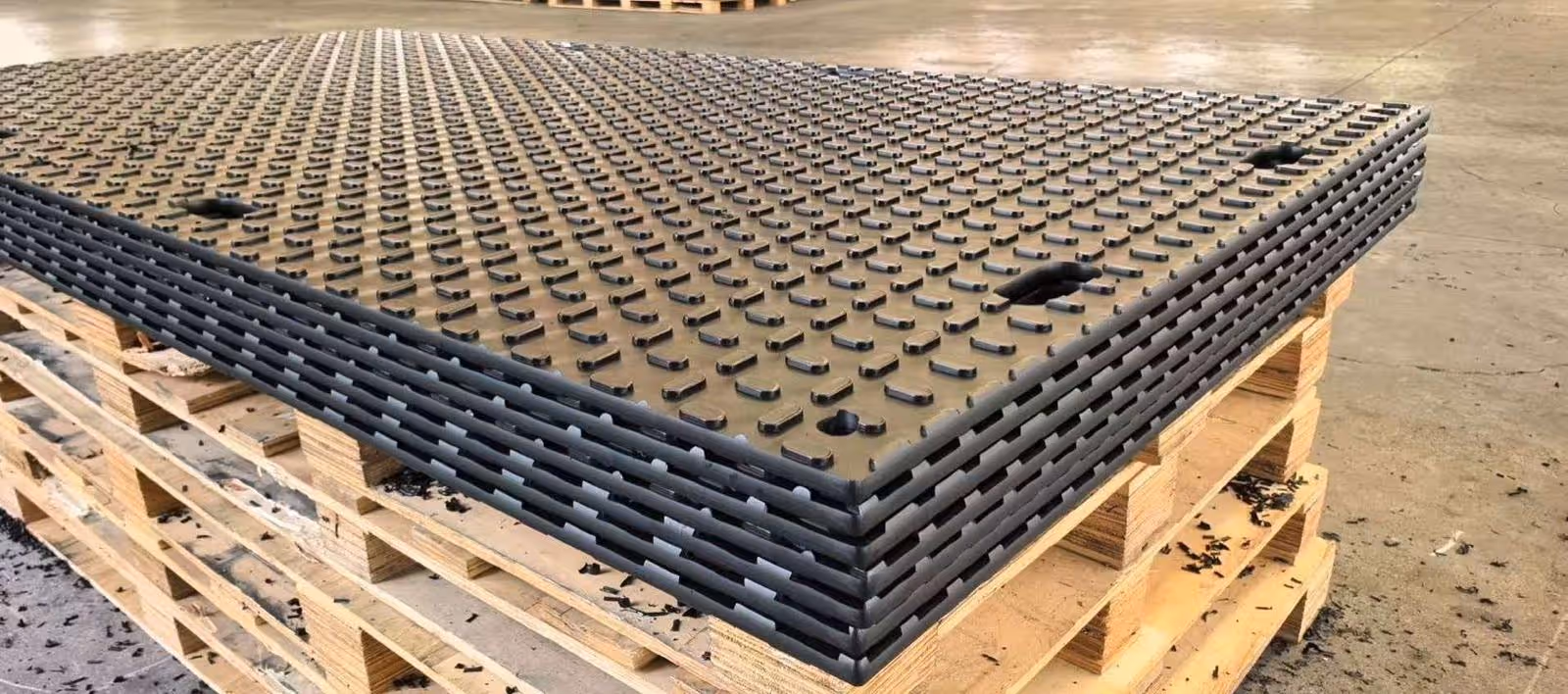

Notus HDPE Ground Protection Mats provide a reliable and versatile solution for creating temporary access roads and working areas across soft, uneven or sensitive ground conditions.
Designed for medium-duty vehicular access, these mats offer a fast and flexible ground protection system suitable for a wide range of environments. They are particularly effective where quick installation and minimal ground disturbance are essential.
Manufactured from high-density polyethylene (HDPE), our ground protection mats deliver exceptional durability, flexibility and impact resistance. This allows them to distribute axle loads more evenly, helping to reduce ground pressure and minimise the risk of damage to delicate surfaces.
These mats are widely used to protect sports pitches, landscaped gardens, stately grounds, school playing fields and other sensitive areas, ensuring safe access for vehicles, equipment and pedestrians while preserving the surface beneath.
• Manufactured from high-strength HDPE for durability and flexibility
• Designed for medium-duty vehicle access
• Provides temporary roadways and working platforms
• Reduces axle load pressure and ground damage
• Suitable for sensitive and landscaped environments
• Quick and efficient installation compared with heavier trackway systems
• Lightweight design allowing easy handling and transport
• Can be installed quickly using a simple two-man lift, reducing labour time on site
• Reusable and environmentally responsible ground protection solution
• Protects delicate surfaces such as grass, turf and landscaped areas
• Creates safe access routes for vehicles and pedestrians
• Faster installation than traditional steel plates or heavier trackway
• Flexible mat system adapts to uneven terrain
• Reduces reinstatement costs after projects or events
• Lightweight mats that can be handled and positioned by two people
HDPE ground protection mats are a popular choice due to their versatility and ease of installation.
They are commonly used for:
• Event and festival access routes
• Temporary pedestrian walkways
• Light to medium vehicle access
• Sports pitches and playing fields protection
• Stately homes and landscaped gardens
• School grounds and public parks
• Film and TV production locations
• Temporary compounds and equipment areas
Contact Notus Ground Safe today to discuss your project requirements, request a quote or arrange delivery of HDPE ground protection mats for your site.
Enquire TodayReliable, Lightweight Temporary Walkway Solution

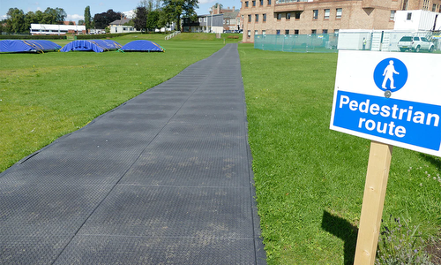

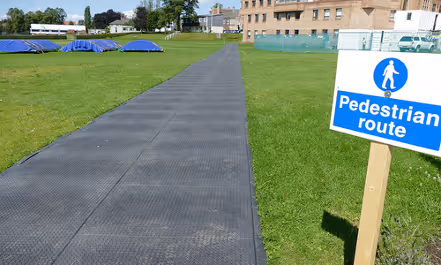

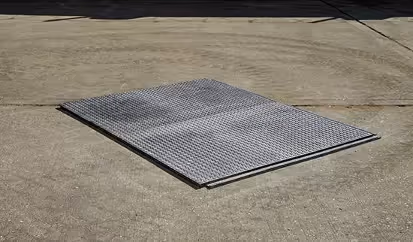

Notus Light Duty (LD) access mats provide a practical and cost-effective solution for creating temporary pedestrian walkways across sensitive or uneven ground. Designed for versatility and ease of use, Notus LD mats are ideal for projects requiring safe, stable access without the need for heavy equipment or complex installation.
Manufactured from durable high-density polyethylene (HDPE), Notus LD mats offer excellent strength while remaining lightweight enough for quick deployment. Their design helps protect grass, soil, and delicate surfaces from foot traffic damage while ensuring safe and secure movement for workers, visitors, and event attendees.
The lightweight construction allows the mats to be installed by a simple two-person lift, enabling fast setup and removal without specialist machinery. This makes them particularly effective for sites requiring rapid installation or frequent repositioning.
With their slip-resistant surface and strong load distribution properties, Notus LD mats help improve safety, reduce ground damage, and create reliable pedestrian routes across a wide variety of terrains.
Lightweight Design
Easy to transport and handle, allowing quick deployment by a two-person manual lift without the need for specialist equipment.
Durable HDPE Construction
Manufacturedfrom high-density polyethylene for excellent durability, flexibility, and long service life in outdoor environments
Slip-Resistant Surface
Textured surface improves grip for pedestrians, helping maintain safe access even in wet or muddy conditions.
Ground Protection
Distributes weight to reduce damage to sensitive surfaces such as grass, soil, sports fields, and landscaped areas.
Quick Installation
Designed for rapid installation and removal, making it ideal for temporary access requirements and short-term projects.
Versatile Applications
Suitable for pedestrian walkways, event flooring, site access routes, and maintenance pathways across multiple sectors.
Notus LD pedestrian walkway mats are widely used across arange of industries due to their versatility and ease of installation.
Typical applications include:
Temporary pedestrian walkways on construction sites
Outdoor events and festivals
School grounds and sports fields
Parks, gardens, and heritage sites
Utility and maintenance access routes
Portable accommodation access paths
