As the United Kingdom accelerates its digital transformation, the rollout of 5G infrastructure has reached even the most remote corners of the country. While urban installations present their own set of architectural challenges, rural deployments: particularly in the rugged terrain of the Scottish Highlands: require a completely different level of logistical and engineering expertise.
The Glenveg 5G Mast Installation project serves as a definitive case study in how heavy-duty ground protection mats and temporary access roads can bridge the gap between ambitious infrastructure goals and sensitive environmental preservation. Notus Ground Safe was commissioned to provide a comprehensive access solution that could support the extreme weights of construction plant while ensuring the site remained undisturbed.
The Scottish Highlands represent one of the most challenging environments for telecommunications infrastructure. The push for "Total Network Coverage" means that masts must often be placed on high-altitude ridges or deep within glens where traditional road access is non-existent.
In Glenveg, the proposed site for the 5G mast was located nearly 1.5 kilometres from the nearest metalled road. The terrain consisted of a mixture of soft peatland, dense heather, and undulating soil: surfaces that are notoriously unstable for heavy machinery. For the project to succeed, the primary contractor required a solution that could handle:
Glenveg is characterized by its dramatic landscape and its ecological importance. Much of the surrounding area is categorized under sensitive land management agreements, meaning any permanent damage to the ground could lead to significant restoration costs and regulatory penalties.
The project demanded a temporary access road that could be deployed rapidly and removed without leaving a trace. Conventional methods, such as laying crushed stone or installing permanent tarmac paths, were immediately ruled out due to their environmental impact and the cost of post-project remediation.
Notus Ground Safe conducted a comprehensive site survey to assess the specific ground conditions and load-bearing requirements. Given the weight of the crane and the specialized delivery vehicles, we selected our heavy-duty trackway system, capable of supporting loads up to 200 tonnes.
Our trackway hire UK service provides high-density polyethylene (HDPE) mats that are specifically engineered for maximum durability. Unlike timber bog mats, which can become waterlogged and heavy over time, these composite mats maintain a consistent weight and provide superior grip through a specialized tread pattern.
One of the core pillars of the Glenveg project was sustainability. The "no-excavation" approach provided by Notus Ground Safe meant that no topsoil was removed, and no sub-base material was imported. This preserved the natural seed bank within the soil and maintained the local hydrology, which is vital in peatland environments.
By using temporary access roads, the project avoided the carbon-heavy process of transporting thousands of tonnes of aggregate. Instead, our mats were delivered, installed, and eventually removed, leaving the grass and heather to recover naturally within a single growing season.
Time was of the essence for the Glenveg installation. Telecommunications projects often operate on narrow windows of opportunity, coordinated with weather forecasts and specialist equipment availability. Notus Ground Safe leveraged our 24-hour turnaround capability to ensure the trackway was in place before the arrival of the mast components.

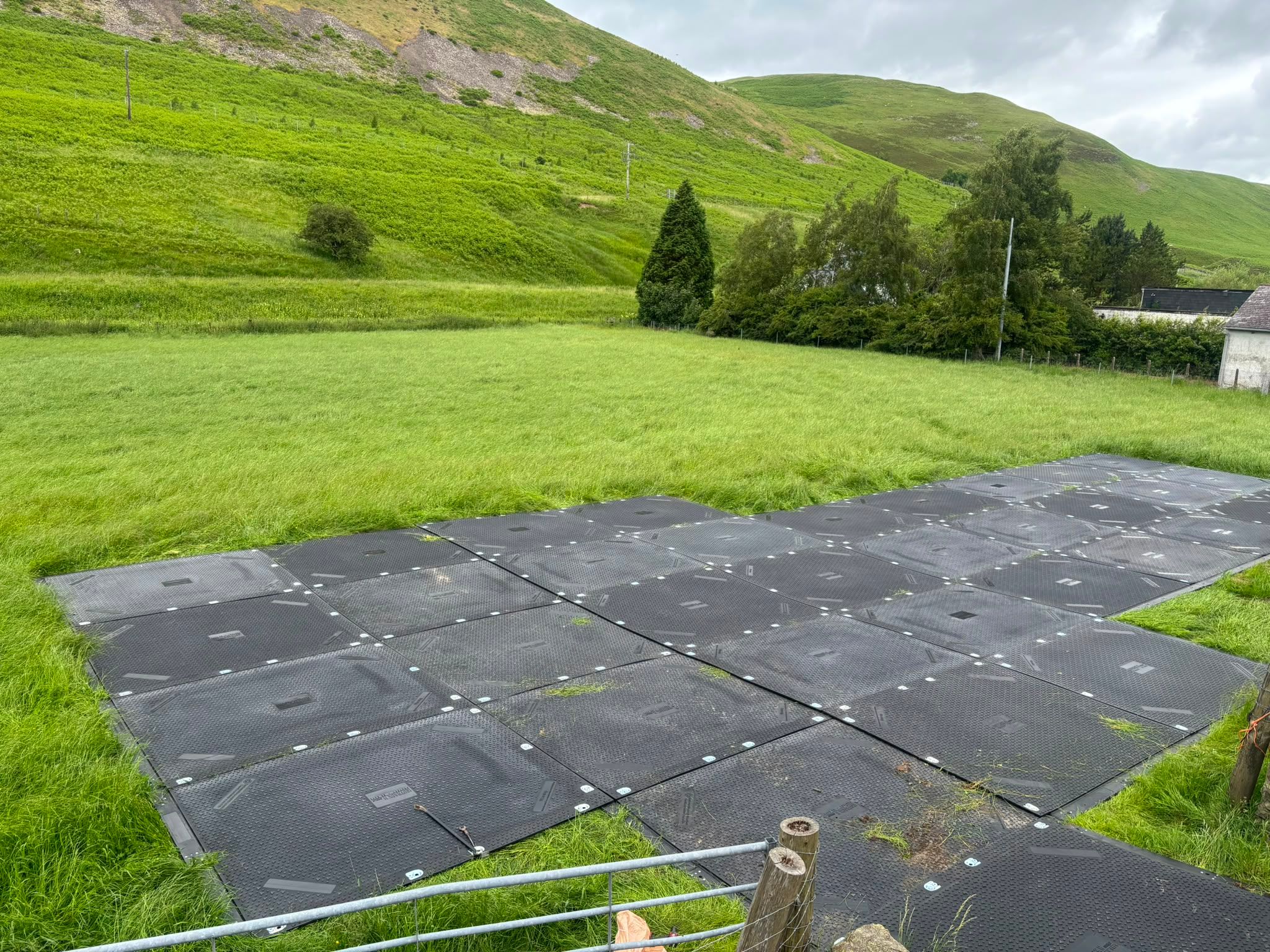

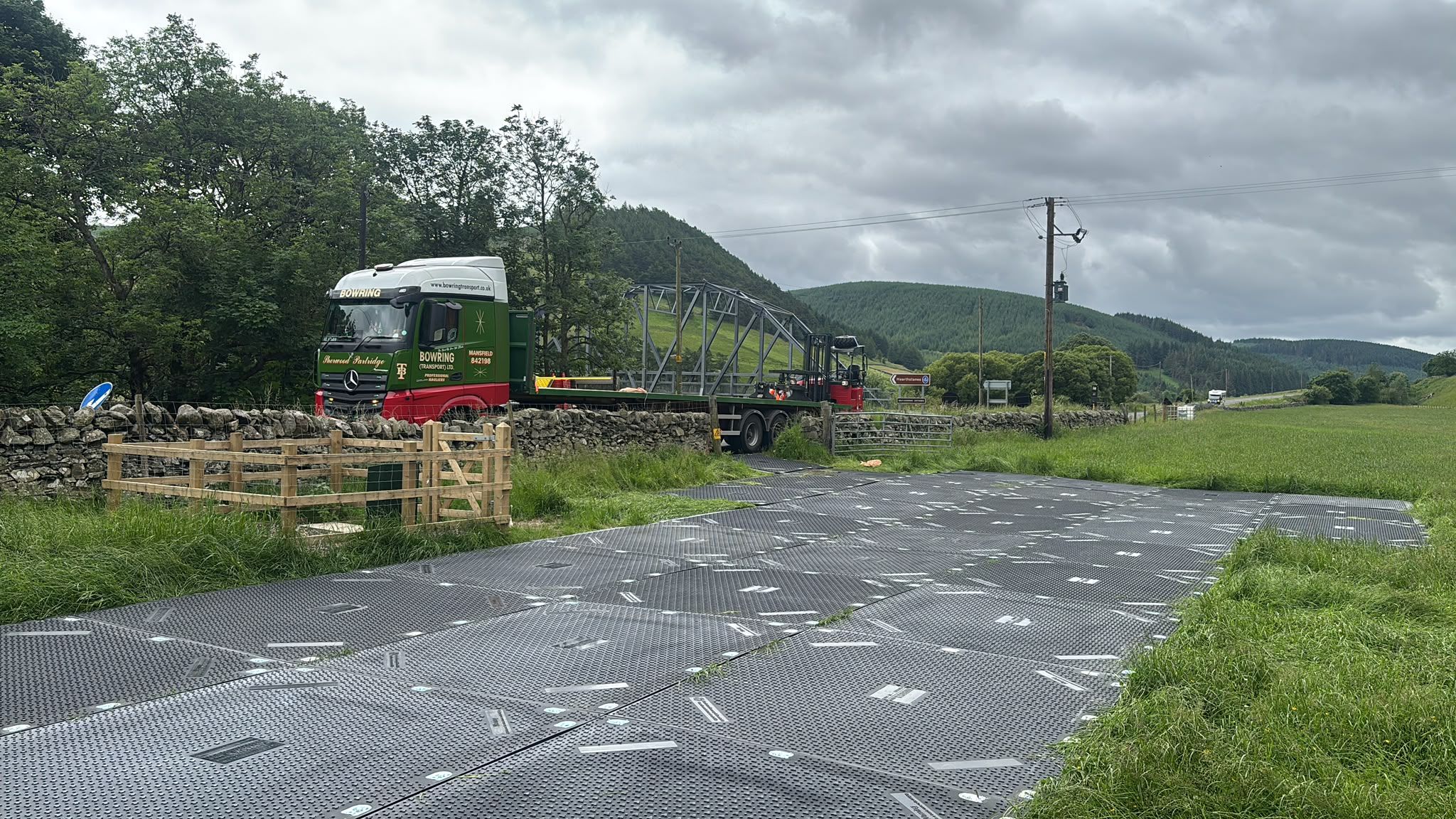

Our specialist transport fleet navigated the narrow Highland tracks to reach the edge of the site. Using vehicle-mounted cranes, the mats were unloaded and positioned. Our professional installation team worked systematically to lay the trackway, ensuring that the path avoided particularly boggy areas identified during the survey.

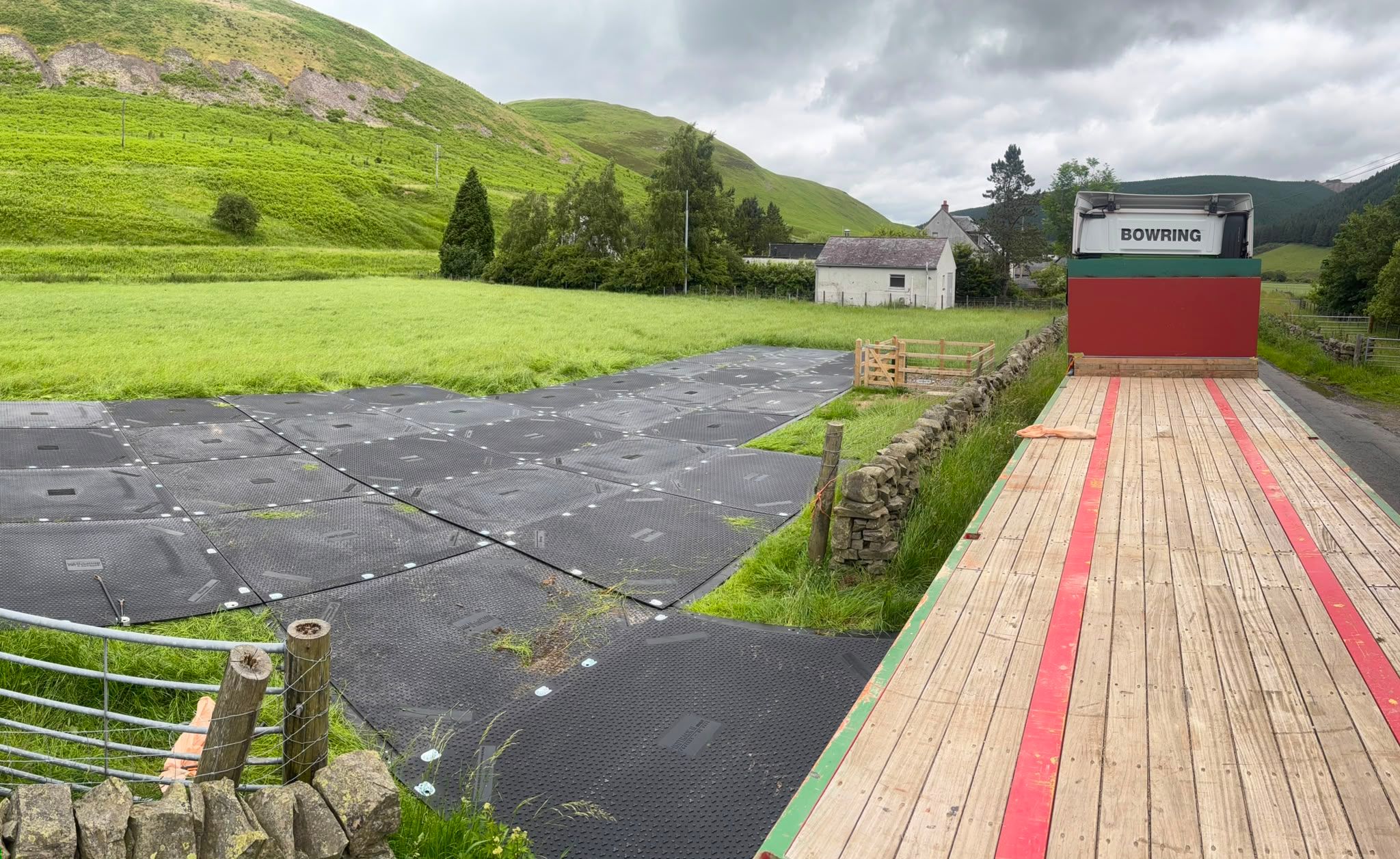

The mast installation required a 60-tonne mobile crane. A standard access road is insufficient for the outrigger pressure of such a machine. We engineered a reinforced "crane pad" area by doubling the thickness of the mats in a cross-hatched configuration. This distributed the point-load pressure across a wider surface area, preventing the crane from sinking or tilting during the lift.
Throughout the duration of the build, the ground protection mats hire system performed flawlessly. Even after multiple passes by heavy articulated lorries and the sustained pressure of the crane, the underlying ground remained intact.
The textured surface of the mats provided essential safety for the site crew. In the wet conditions typical of Glenveg, muddy ground becomes a significant slip hazard. The Notus Ground Safe system created a clean, predictable walking and driving surface, significantly reducing the risk of on-site accidents and improving overall project efficiency.
The 5G mast in Glenveg was successfully energized three weeks after the initial groundworks began. Once the installation was complete and the heavy plant had vacated the site, our team returned to uplift and remove the trackway.
The results were exactly what the client and the local authorities had hoped for. The "no-excavation" strategy meant that:
With over 20 years of industry experience and 10,000+ projects delivered, Notus Ground Safe understands the complexities of remote site access. Our involvement in the Glenveg 5G mast installation highlights our commitment to providing safe, reliable, and sustainable ground protection solutions.
Whether you are managing a small utility repair or a massive infrastructure project like the one in Glenveg, we offer:
The Glenveg case study proves that modern infrastructure and environmental preservation are not mutually exclusive. By utilizing heavy-duty ground protection mats, the telecommunications industry can reach the most remote locations in the UK without leaving a permanent scar on the landscape.
For your next project requiring temporary access or ground protection, trust the experts who have mastered the toughest terrains in Britain. Contact Notus Ground Safe today for a consultation and quote.
