In the rapidly evolving landscape of telecommunications, infrastructure upgrades often require heavy machinery to access remote or environmentally sensitive locations. For a recent project in Redhill, Surrey, Notus Ground Safe was commissioned to provide a comprehensive ground protection solution for a major telecoms installation.
The project involved the deployment of 250 TuffTrack panels to facilitate safe, reliable access for heavy plant and equipment while adhering to strict environmental and local council mandates. This case study explores how our technical expertise and premium equipment delivered a zero-damage outcome on a logistically challenging site.
Telecoms infrastructure projects are inherently demanding. They often involve high-value equipment, tight delivery schedules, and access routes that cross through public land or sensitive ecosystems. The Redhill site was no exception.
The objective was to create a temporary haul road and working platform capable of supporting multiple heavy vehicles, including cranes and delivery trucks, tasked with installing new telecoms hardware. To achieve this, Notus Ground Safe recommended a high-load-bearing solution using our industry-leading TuffTrack panels.
The Redhill project presented two primary hurdles that required a sophisticated logistical approach:
The site was located on soft, clay-heavy soil that was highly susceptible to rutting and compaction. Given the weight of the telecoms installation rigs: some exceeding 100 tonnes: traditional unreinforced access would have resulted in catastrophic soil displacement and permanent damage to the landscape.
The local council imposed rigorous restrictions regarding the preservation of the public green space. The permit for the works was contingent on the site being returned to its original state immediately following completion. Any visible ground damage or structural soil compromise would have led to substantial fines and project delays.
Furthermore, the site was bordered by residential areas and public walkways, meaning noise, disruption, and safety were paramount concerns for the stakeholders involved.
To meet these challenges, Notus Ground Safe implemented a multi-layered site access strategy designed for maximum stability and minimum impact.
The core of our solution was the TuffTrack panel. These solid-core HDPE (High-Density Polyethylene) mats are engineered to distribute loads of up to 200 tonnes, depending on the underlying ground conditions. Unlike lighter alternatives, TuffTrack mats provide the rigidity necessary to prevent "flexing," which is the leading cause of soil compaction under heavy loads.

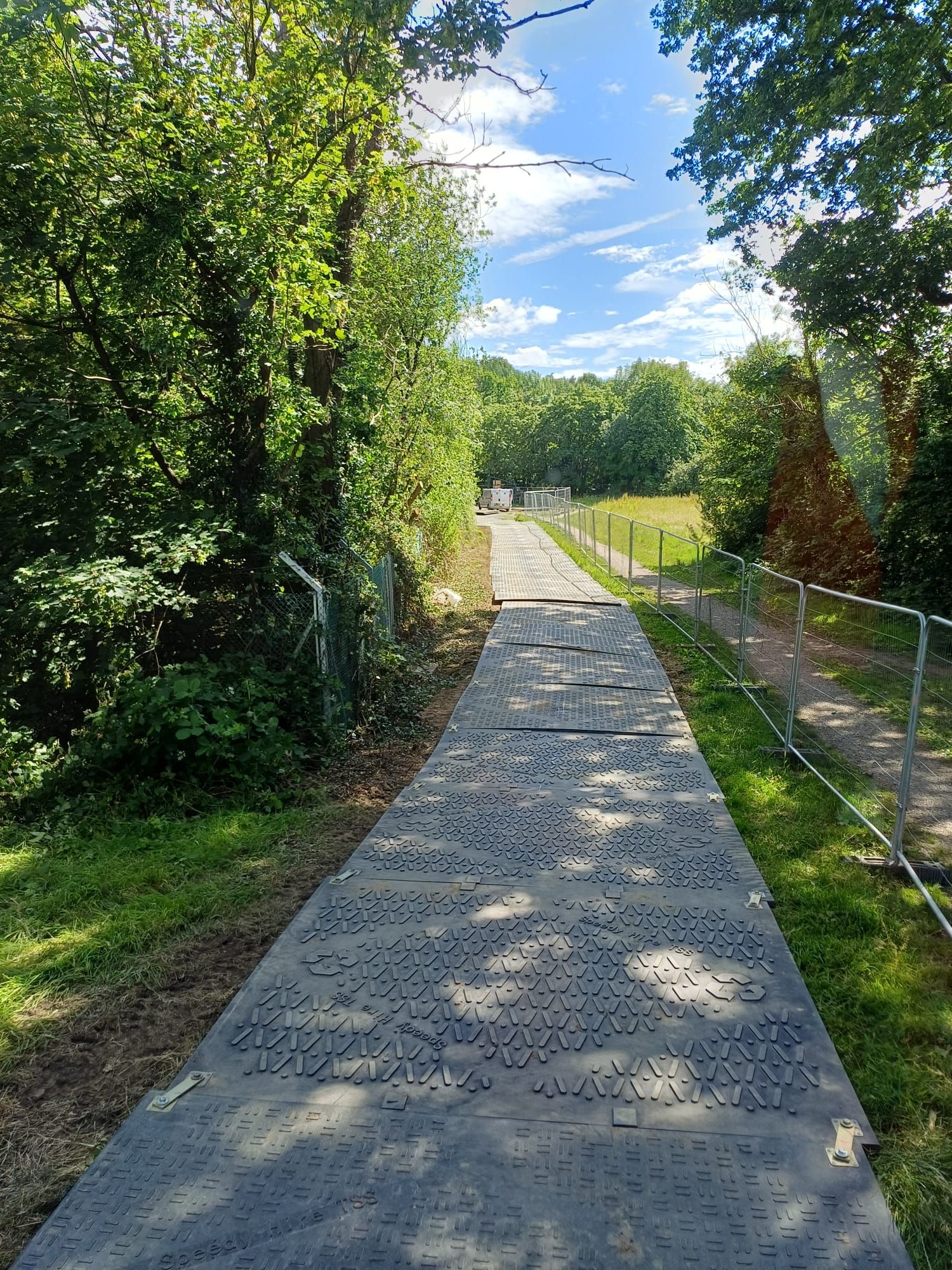

To accommodate the large turning circles of the telecoms equipment and allow for safe passing of site vehicles, we installed a double-width trackway. This ensured that no vehicle ever had to veer off the protected surface, maintaining the integrity of the surrounding grass.

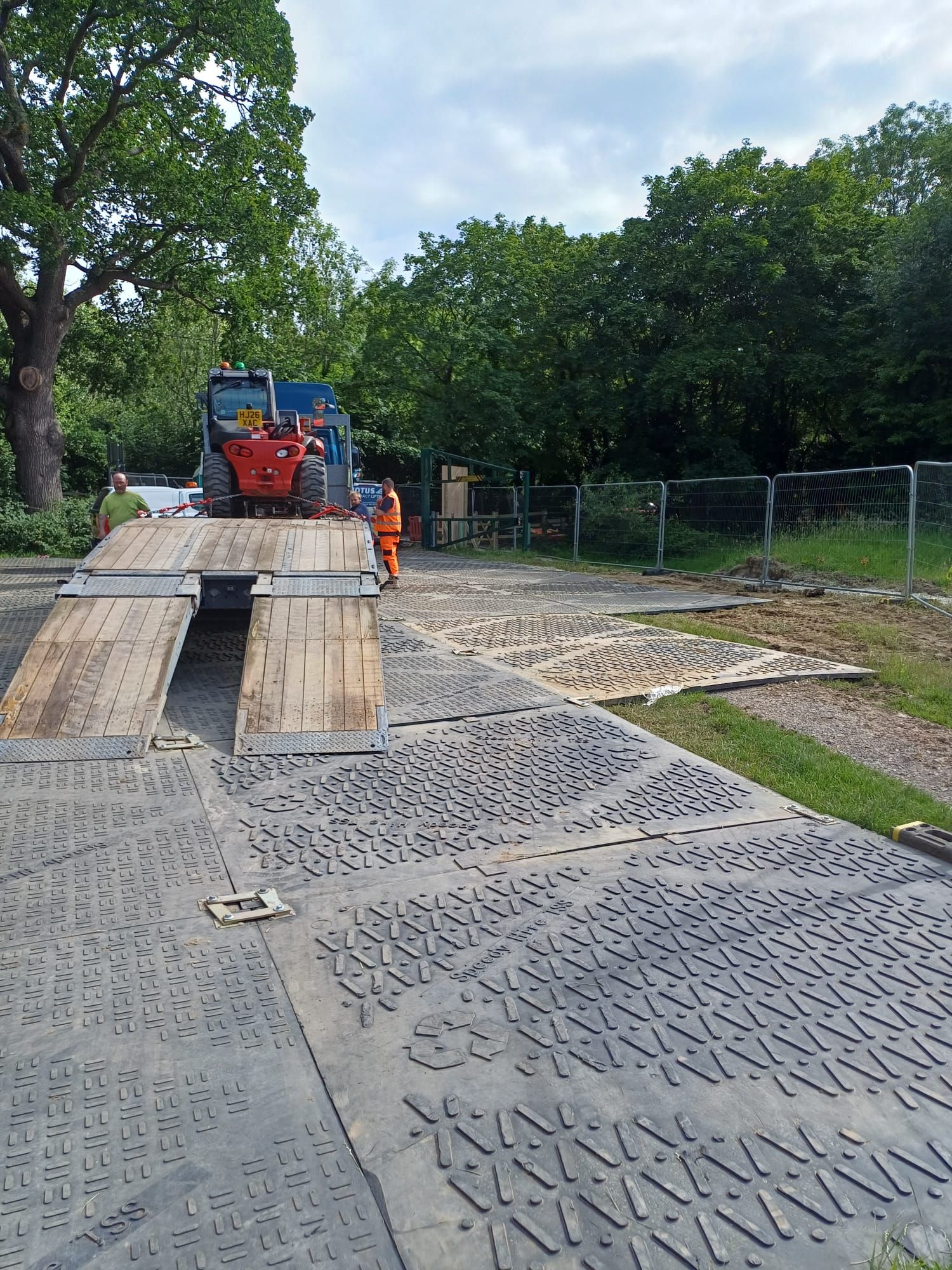

To ensure a seamless transition from the public highway onto the trackway, we utilized specialized ramp boards. These eliminate the "lip" at the start of the temporary road, reducing the risk of tyre damage and ensuring that even low-clearance vehicles could enter the site safely.
Safety on a public-facing site is non-negotiable. Notus Ground Safe integrated Heras fencing alongside the trackway to create a clear demarcation between the construction zone and public access areas. This proactive measure ensured that pedestrians remained safe and the site remained secure during non-working hours.
For industries such as telecoms and utilities, TuffTrack is the gold standard for temporary access. Its technical specifications make it uniquely suited for heavy plant operations:
| Feature | Specification | Benefit |
|---|---|---|
| Material | 100% Recycled HDPE | High durability and sustainability |
| Load Capacity | Up to 200 Tonnes | Supports cranes and heavy haulage rigs |
| Surface Profile | Chevron Traction | Prevents vehicle slippage in wet conditions |
| Connection System | Four-point Bolted | Prevents mat migration or "drifting" |
| Weight | 295kg per panel | Provides a solid, non-flexing base |
The deployment of the TuffTrack panels in Redhill was a resounding success. Despite the heavy traffic and the presence of high-capacity cranes, the ground protection system performed flawlessly.
Upon removal of the 250 panels, the underlying turf showed zero signs of rutting or soil compaction. The council was satisfied with the site's condition, allowing for an immediate sign-off without the need for expensive reinstatement works.
By providing a stable, all-weather surface, the telecoms team was able to maintain their schedule regardless of the weather conditions. The trackway ensured that no vehicles became bogged down, a common issue that can cost thousands in downtime.
The use of Heras fencing and the clean, professional appearance of the trackway minimized the visual and physical impact on the local community. The project was completed with zero complaints from local residents or the council.
The Redhill telecoms project highlights the importance of choosing the right partner for trackway hire in the UK. At Notus Ground Safe, we bring over 20 years of experience to every project, ensuring that your site remains safe, accessible, and protected.
Whether you are managing a utility installation, an event, or a major infrastructure build, our team provides free site surveys to assess your specific ground conditions and recommend the most cost-effective, high-performance solution.
Need a quote for your next project? Contact Notus Ground Safe today for a 24-hour turnaround on quotes and professional installation services.
